2SD1996 - Silicon NPN Transistor

2SD1996 Description

Transistor 2SD1996 Silicon NPN epitaxial planer type For low-voltage output amplification For muting For DC-DC converter Unit: mm 6.9±0.1 0.15 0.7 .

2SD1996 Features

* q q q q 0.65 max. 14.5±0.5 0.45
* 0.05 +0.1 Low collector to emitter saturation voltage VCE(sat). Low ON resistance Ron. High foward current transfer ratio hFE. Allowing supply with the radial taping. (Ta=25˚C) Ratings 25 20 12 1 0.5 600 150
* 55 ~ +150 Unit V V V A A mW ˚C ˚C 0.45

📥 Download Datasheet

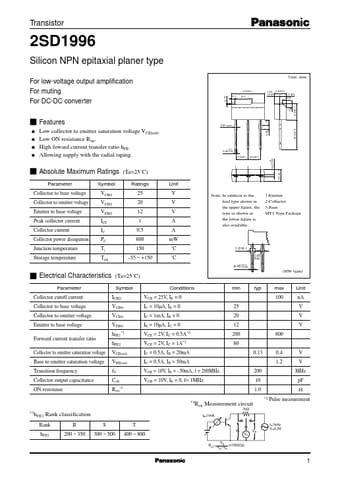

Preview of 2SD1996 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD1996
Manufacturer
Panasonic Semiconductor
File Size
43.85 KB
Datasheet
2SD1996_PanasonicSemiconductor.pdf
Description
Silicon NPN Transistor
