MIP2L30MS Datasheet - Panasonic

MIP2L30MS, Silicon MOSFET

MIP2L30MS Silicon MOS FET type integrated circuit * .

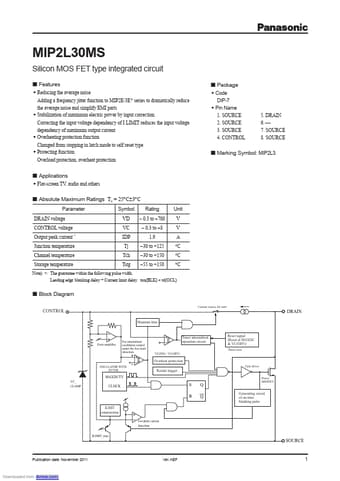

datasheet Preview Page 1 from Datasheet4u.com

MIP2L30MS-Panasonic.pdf

MIP2L30MS Datasheet Preview — Preview of MIP2L30MS PDF

Datasheet Details

Part number:

MIP2L30MS

Manufacturer:

Panasonic

File Size:

479.62 KB

Description:

Silicon MOSFET

Features

* Reducing the average noise Adding a frequency jitter function to MIP2E/3E
* series to dramatically reduce the average noise and simplify EMI parts
* Stabilization of maximum electric power by input correction Correcting the input voltage dependency of I LIMIT reduces the input v

Applications

* Flat-screen TV, audio and others
* Absolute Maximum Ratings Ta = 25°C±3°C Parameter Symbol Rating Unit DRAIN voltage VD - 0.3 to +700 V CONTROL voltage VC - 0.3 to +8 V Output peak current
* IDP 1.9 A Junction temperature Tj -30 to +125 °C Channel temperature Tc
