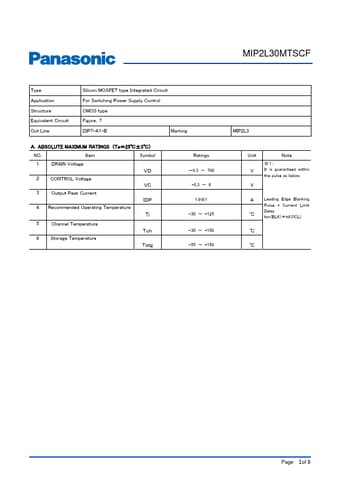

Product Standards MIP2L30MTSCF Type Application Structure Equivalent Circuit Out Line Silicon MOSFET type Integrated Circuit For Switching Power Supply Control CMOS type Figure．7 DIP7-A1-B Marking Ａ．ABSOLUTE MAXIMUM RATINGS （Ta＝25℃±3℃） NO. Item Symbol 1 DRAIN Voltage ＶＤ 2 CONTROL Voltage ＶＣ 3 Output Peak Current ＩＤP 4 Recommended Operating Temperature Ｔj 5 Channel Temperature 6 Storage Temperature ＴｃｈＴｓｔｇ Ratings －0.3 ～ 700 -0.3 ～ 8 1.9※1 -30 ～ +125 -30 ～ +150 -55 ～ +150 MIP2L3 .
