MIP2L50MY, Silicon MOSFET

MIP2L50MY Silicon MOS FET type integrated circuit * .

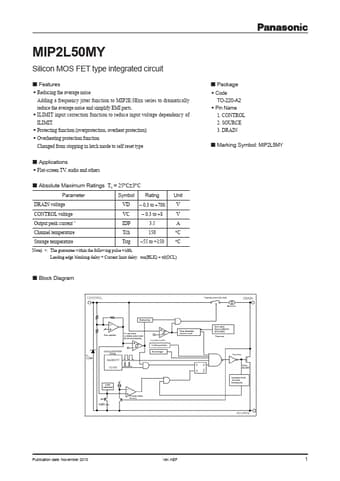

datasheet Preview Page 1 from Datasheet4u.com

MIP2L50MY-Panasonic.pdf

MIP2L50MY Datasheet Preview — Preview of MIP2L50MY PDF

Datasheet Details

Part number:

MIP2L50MY

Manufacturer:

Panasonic

File Size:

483.41 KB

Description:

Silicon MOSFET

Features

* Reducing the average noise Adding a frequency jitter function to MIP2E/3Exx series to dramatically reduce the average noise and simplify EMI parts.
* ILIMIT input correction function to reduce input voltage dependency of ILIMIT.
* Protecting function (overprotection, overhe

Applications

* Flat-screen TV, audio and others
* Absolute Maximum Ratings Ta = 25°C±3°C Parameter Symbol Rating Unit DRAIN voltage VD - 0.3 to +700 V CONTROL voltage VC - 0.3 to +8 V Output peak current
* IDP 3.5 A Channel temperature Tch 150 °C Storage temperature Tstg -55 to +
