FS70UM-2 Datasheet, Fet, Renesas

FS70UM-2 Features

  • Fet
  • Drive voltage : 10 V
  • VDSS : 100 V
  • rDS(ON) (max) : 20 mΩ
  • ID : 70 A
  • Integrated Fast Recovery Diode (TYP.) : 120 ns Outline RENESAS Packag

PDF File Details

Part number:

FS70UM-2

Manufacturer:

Renesas ↗

File Size:

165.04kb

Download:

📄 Datasheet

Description:

Nch power mos fet.

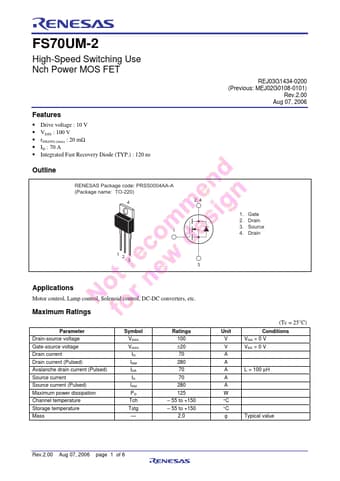

Datasheet Preview: FS70UM-2 📥 Download PDF (165.04kb)
Page 2 of FS70UM-2 Page 3 of FS70UM-2

FS70UM-2 Application

  • Applications Motor control, Lamp control, Solenoid control, DC-DC converters, etc. Maximum Ratings Parameter Drain-source voltage Gate-source volta
