NP60N03KUG - MOS FIELD EFFECT TRANSISTOR

Renesas

📥 Download Datasheet

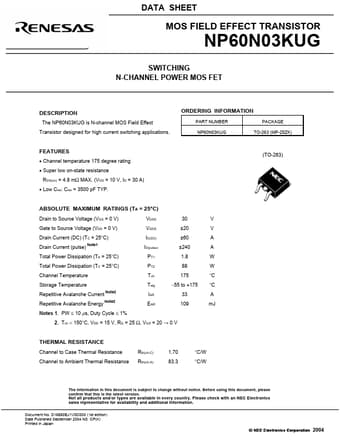

NP60N03KUG Datasheet Preview — Preview of NP60N03KUG PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NP60N03KUG
Manufacturer	Renesas ↗
File Size	174.66 KB
Description	MOS FIELD EFFECT TRANSISTOR
Datasheet	NP60N03KUG-Renesas.pdf

NP60N03KUG Product details

Description

The NP60N03KUG is N-channel MOS Field Effect Transistor designed for high current switching applications.

Features

Channel temperature 175 degree rating.
Super low on-state resistance RDS(on) = 4.8 mΩ MAX. (VGS = 10 V, ID = 30 A).
Low Ciss: Ciss = 3500 pF TYP. (TO-263).
