NP60N03SUG Datasheet, Fet, Renesas

NP60N03SUG Features

  • Fet
  • Channel temperature 175 degree rated
  • Super low on-state resistance RDS(on) = 3.8 mΩ MAX. (VGS = 10 V, ID = 30 A)
  • High current rating ID(DC) = ±60 A

PDF File Details

Part number:

NP60N03SUG

Manufacturer:

Renesas ↗

File Size:

239.77kb

Download:

📄 Datasheet

Description:

N-channel power mos fet. The NP60N03SUG is N-channel MOS Field Effect Transistor designed for high current switching applications. ORDERING INFORMATION PART

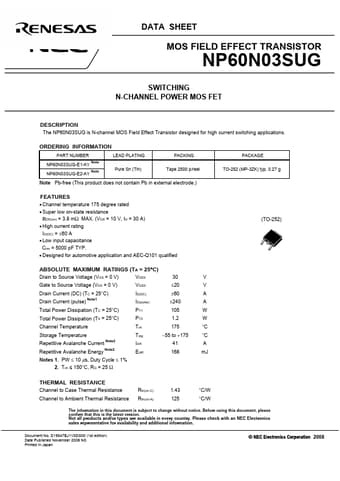

Datasheet Preview: NP60N03SUG 📥 Download PDF (239.77kb)
Page 2 of NP60N03SUG Page 3 of NP60N03SUG

NP60N03SUG Application

  • Applications ORDERING INFORMATION PART NUMBER NP60N03SUG-E1-AY Note NP60N03SUG-E2-AY Note LEAD PLATING Pure Sn (Tin) PACKING Tape 2500 p/reel
