NP60N055KUG Datasheet, Fet, Renesas

NP60N055KUG Features

  • Fet
  • Channel temperature 175 degree rating
  • Super low on-state resistance RDS(on) = 9.4 mΩ MAX. (VGS = 10 V, ID = 30 A)
  • Low Ciss: Ciss = 3700 pF TYP. (TO-263)

PDF File Details

Part number:

NP60N055KUG

Manufacturer:

Renesas ↗

File Size:

182.98kb

Download:

📄 Datasheet

Description:

N-channel power mos fet. The NP60N055KUG is N-channel MOS Field Effect Transistor designed for high current switching applications. ORDERING INFORMATION PAR

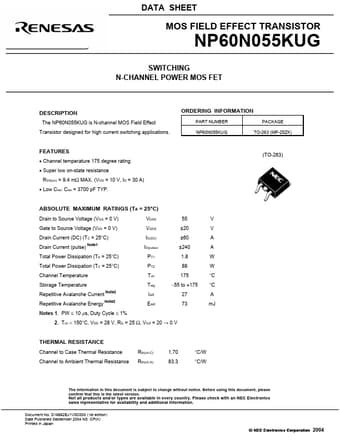

Datasheet Preview: NP60N055KUG 📥 Download PDF (182.98kb)
Page 2 of NP60N055KUG Page 3 of NP60N055KUG

NP60N055KUG Application

  • Applications ORDERING INFORMATION PART NUMBER PACKAGE NP60N055KUG TO-263 (MP-25ZK) FEATURES
  • Channel temperature 175 degree rating <
