RJP60F0DPE

N-Channel IGBT

RJP60F0DPE Features

* Low collector to emitter saturation voltage VCE(sat) = 1.4 V typ. (at IC = 25 A, VGE = 15V, Ta = 25°C)

* Trench gate and thin wafer technology

* High speed switching tf = 90 ns typ. (at IC = 30 A, VCE = 400 V, VGE = 15 V, Rg = 5 , Ta = 25°C, inductive load) R07DS0540EJ0100 Rev.1.00 Se

RJP60F0DPE General Description

of circuits, software and other related information in this document are provided only to illustrate the operation of semiconductor products and application examples. You are fully responsible for the incorporation of these circuits, software, and information in the design of your equipment. Renesa.

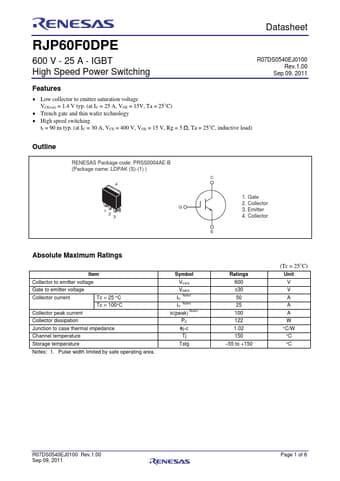

RJP60F0DPE Datasheet (142.80 KB)
