STB18NF25 Datasheet - ST Microelectronics

STB18NF25, N-Channel MOSFET

STB18NF25 Datasheet Automotive-grade N-channel 250 V, 140 mΩ typ., 17 A STripFET II Power MOSFET in a D²PAK package TAB 2 3 1 D²PAK D(2, TAB) Featur.
S(3) This Power MOSFET has been developed using STMicroelectronics' unique AM01475v1_noZen STripFET process, which is specifically designed to min.

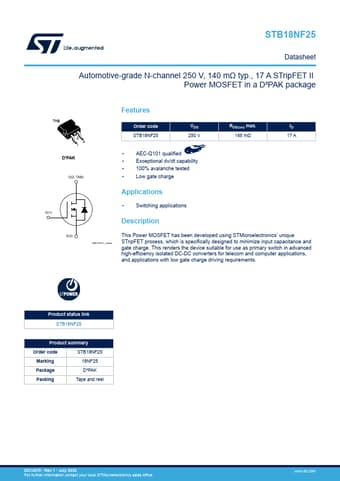

datasheet Preview Page 1 from Datasheet4u.com

STB18NF25_STMicroelectronics.pdf

STB18NF25 Datasheet Preview — Preview of STB18NF25 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number:

STB18NF25

Manufacturer:

STMicroelectronics ↗

File Size:

788.39 KB

Description:

N-Channel MOSFET

Features

* Order code STB18NF25 VDS 250 V RDS(on) max. 165 mΩ ID 17 A
* AEC-Q101 qualified
* Exceptional dv/dt capability
* 100% avalanche tested
