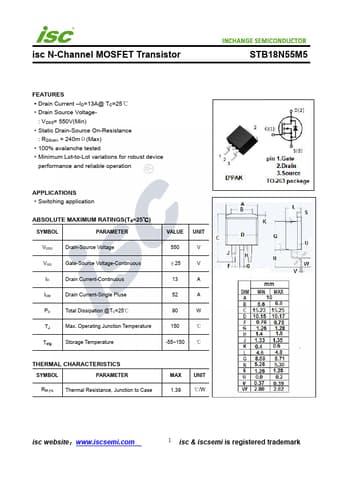

STB18N55M5 Datasheet, Mosfet, INCHANGE

STB18N55M5 Features

• Mosfet
• Drain Current
    –ID=13A@ TC=25℃
• Drain Source Voltage- : VDSS= 550V(Min)
• Static Drain-Source On-Resistance : RDS(on) = 240mΩ(Max)
• 100% a

PDF File Details

Part number:

STB18N55M5

Manufacturer:

INCHANGE

File Size:

264.49kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

STB18N55M5 Application

• Applications
• Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Volta
