STGB12NB60KD, STGP12NB60KD N-CHANNEL IGBT

ST Microelectronics

Description

STGP12NB60KD - STGB12NB60KD N-CHANNEL 18A - 600V TO-220/D2PAK SHORT CIRCUIT PROOF PowerMESH™ IGBT TYPE STGP12NB60KD STGB12NB60KD s s s s s s s VCES 6.
Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the PowerMESH™.

📥 Download Datasheet

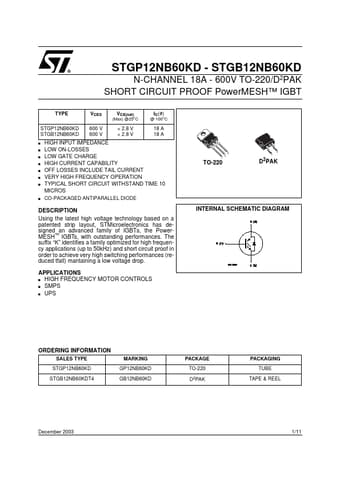

STGB12NB60KD Datasheet Preview — This datasheet PDF includes multiple part numbers: STGB12NB60KD, STGP12NB60KD. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STGB12NB60KD, STGP12NB60KD
Manufacturer: STMicroelectronics ↗
File Size: 531.52 KB
Datasheet: STGP12NB60KD_STMicroelectronics.pdf
Description: N-CHANNEL IGBT
Note: This datasheet PDF includes multiple part numbers: STGB12NB60KD, STGP12NB60KD.
Please refer to the document for exact specifications by model.

Applications

* (up to 50kHz) and short circuit proof in order to achieve very high switching performances (reduced tfall) mantaining a low voltage drop. APPLICATIONS s HIGH FREQUENCY MOTOR CONTROLS s SMPS s UPS INTERNAL SCHEMATIC DIAGRAM ORDERING INFORMATION SALES TYPE STGP12NB60KD STGB12NB60KDT4 MARKING GP12NB6
