STGB8NC60K Datasheet, Igbt, ST Microelectronics

STGB8NC60K Features

  • Igbt Type STGB8NC60K STGD8NC60K STGP8NC60K
  • VCES 600V 600V 600V VCE(sat)Typ @25°C 2.2V 2.2V 2.2V IC @100°C 8A 8A 8A 3 1 2 3 1 DPAK TO-220 Lower o

PDF File Details

Part number:

STGB8NC60K

Manufacturer:

STMicroelectronics ↗

File Size:

468.14kb

Download:

📄 Datasheet

Description:

(stgx8nc60k) short circuit rated powermesh igbt. Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBT

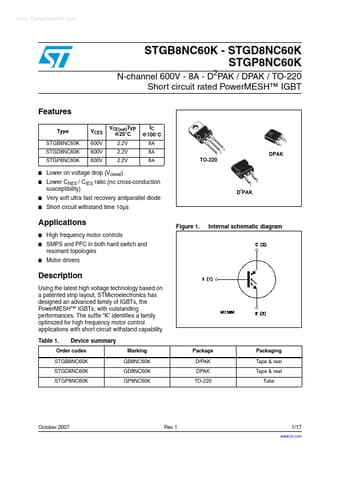

Datasheet Preview: STGB8NC60K 📥 Download PDF (468.14kb)
Page 2 of STGB8NC60K Page 3 of STGB8NC60K

STGB8NC60K Application

  • Applications
  • High frequency motor controls SMPS and PFC in both hard switch and resonant topologies Motor drivers De
