STP9NK70Z N-CHANNEL Power MOSFET

STP9NK70Z Description

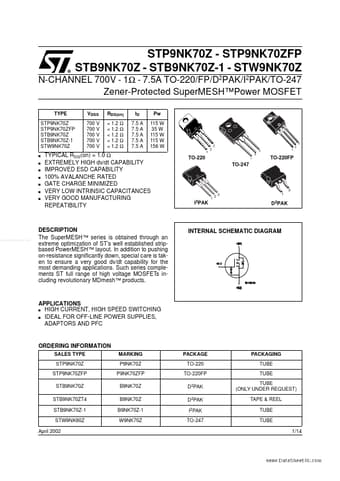

N-CHANNEL 700V - 1Ω - 7.5A TO-220/FP/D2PAK/I2PAK/TO-247 Zener-Protected SuperMESH™Power MOSFET TYPE STP9NK70Z STP9NK70ZFP STB9NK70Z STB9NK70Z-1 STW9NK.
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout.

STP9NK70Z Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to souce. In this respect the Zener voltag

STP9NK70Z Applications

* Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. INTERNAL SCHEMATIC DIAGRAM APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s IDEAL FOR OFF-LINE POWER SUPPLIES, ADAPTORS AND PFC ORDERING INFORMATION SALES TYPE STP9NK70Z STP9NK70ZFP STB9NK7
