STPS30H100CT, STPS30H100CW 100V power Schottky rectifier

ST Microelectronics

Description

STPS30H100C Datasheet 100 V power Schottky rectifier A1 A2 K TO-220AB A2 A1 K K TO-247 A2 K A1 .
This dual Schottky rectifier is designed for high frequency miniature switch mode power supplies such as adaptors and on-board DC-DC converters.

📥 Download Datasheet

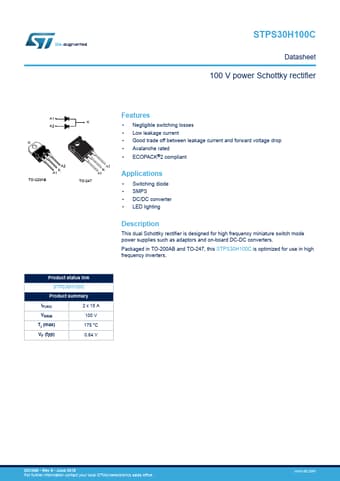

STPS30H100CT Datasheet Preview — This datasheet PDF includes multiple part numbers: STPS30H100CT, STPS30H100CW. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STPS30H100CT, STPS30H100CW
Manufacturer: STMicroelectronics ↗
File Size: 234.34 KB
Datasheet: STPS30H100CW_STMicroelectronics.pdf
Description: 100V power Schottky rectifier
Note: This datasheet PDF includes multiple part numbers: STPS30H100CT, STPS30H100CW.
Please refer to the document for exact specifications by model.

Features

* Negligible switching losses
* Low leakage current
* Good trade off between leakage current and forward voltage drop
* Avalanche rated

Applications

* Switching diode
* SMPS
* DC/DC converter
