STPS30H60CG - Power Schottky Rectifier

This page provides the datasheet information for the STPS30H60CG, a member of the STPS30H60C Power Schottky Rectifier family.

Datasheet Summary

Description

Dual centre tab Schottky rectifier suited for high frequency switch mode power supply.

Packaged in TO-220FPAB, TO-220AB, TO-247, I2PAK, and D2PAK, this device is intended to be used in notebook and LCD adaptors and desktop SMPS.

Features

  • High junction temperature capability.
  • Avalanche rated.
  • Low leakage current.
  • Good trade-off between leakage current and forward voltage drop.
  • High frequency operation.

📥 Download Datasheet

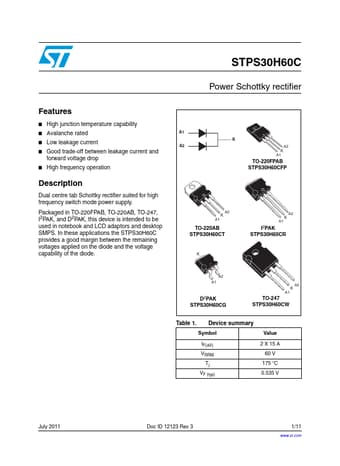

Datasheet preview – STPS30H60CG
