STPS30H100DJF - power Schottky rectifier

Datasheet Summary

Description

This Schottky rectifier is ideally suited for switch mode power supply and high frequency DC to DC converters.

Packaged in PowerFLAT 5x6, the STPS30H100DJF is optimized for use in low voltage high frequency inverters, free-wheeling and polarity protection applications.

Features

  • Low forward voltage drop.
  • Very low conduction losses.
  • Negligible switching losses.
  • Extremely fast switching.
  • Low thermal resistance.
  • Avalanche rated.
  • High integration.
  • Thin package: 1 mm.
  • ECOPACK2 compliant.

📥 Download Datasheet

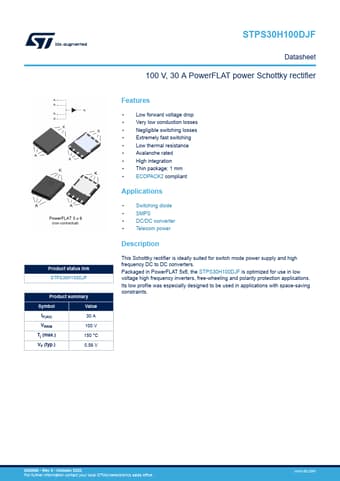

Datasheet preview – STPS30H100DJF

Datasheet Details

Part number STPS30H100DJF
Manufacturer STMicroelectronics
File Size 493.16 KB
Description power Schottky rectifier
Datasheet download datasheet STPS30H100DJF Datasheet
Additional preview pages of the STPS30H100DJF datasheet.

📁 Similar Datasheet

  • STPS30H100CT - 100V power Schottky rectifier (ST Microelectronics)
  • STPS30H100CW - 100V power Schottky rectifier (ST Microelectronics)
  • STPS30H60C - Power Schottky Rectifier (ST Microelectronics)
  • STPS30100ST - 100V Power Schottky Rectifier (ST Microelectronics)
  • STPS30120C - Power Schottky Rectifier (ST Microelectronics)
  • STPS30120DJF - Low drop power Schottky rectifier (ST Microelectronics)
  • STPS30150C - High voltage power Schottky rectifier (ST Microelectronics)
  • STPS30150CFP - High voltage power Schottky rectifier (ST Microelectronics)
  • STPS30150CFP - Schottky Barrier Rectifier (INCHANGE)
  • STPS30150CT - High voltage power Schottky rectifier (ST Microelectronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
Product status link STPS30H100DJF Product summary Symbol Value IF(AV) 30 A VRRM 100 V Tj (max.) 150 °C VF (typ.) 0.56 V STPS30H100DJF Datasheet 100 V, 30 A PowerFLAT power Schottky rectifier Features • Low forward voltage drop • Very low conduction losses • Negligible switching losses • Extremely fast switching • Low thermal resistance • Avalanche rated • High integration • Thin package: 1 mm • ECOPACK2 compliant Applications • Switching diode • SMPS • DC/DC converter • Telecom power Description This Schottky rectifier is ideally suited for switch mode power supply and high frequency DC to DC converters. Packaged in PowerFLAT 5x6, the STPS30H100DJF is optimized for use in low voltage high frequency inverters, free-wheeling and polarity protection applications.
