STPS30H60C - Power Schottky Rectifier

Datasheet Summary

Description

Dual centre tab Schottky rectifier suited for high frequency switch mode power supply.

Packaged in TO-220FPAB, TO-220AB, TO-247, I2PAK, and D2PAK, this device is intended to be used in notebook and LCD adaptors and desktop SMPS.

Features

  • High junction temperature capability.
  • Avalanche rated.
  • Low leakage current.
  • Good trade-off between leakage current and forward voltage drop.
  • High frequency operation.

📥 Download Datasheet

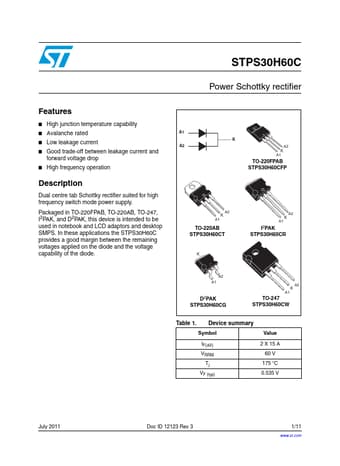

Datasheet preview – STPS30H60C

Datasheet Details

Part number STPS30H60C
Manufacturer STMicroelectronics
File Size 156.49 KB
Description Power Schottky Rectifier
Datasheet download datasheet STPS30H60C Datasheet
Additional preview pages of the STPS30H60C datasheet.
