STPS30H100CW

100V power Schottky rectifier

STPS30H100CW Features

* Negligible switching losses

* Low leakage current

* Good trade off between leakage current and forward voltage drop

* Avalanche rated

* ECOPACK®2 compliant Applications

* Switching diode

* SMPS

* DC/DC converter

* LED lighting

STPS30H100CW General Description

This dual Schottky rectifier is designed for high frequency miniature switch mode power supplies such as adaptors and on-board DC-DC converters. Packaged in TO-200AB and TO-247, this STPS30H100C is optimized for use in high frequency inverters. Product status link STPS30H100C Product summary IF(.

STPS30H100CW Datasheet (234.34 KB)

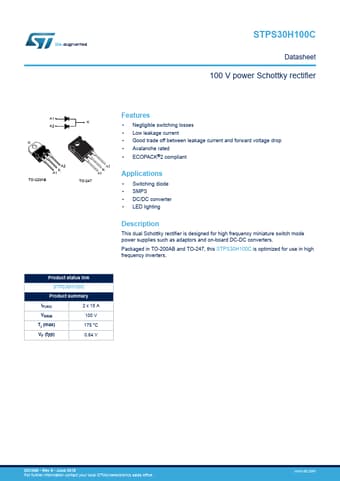

Preview of STPS30H100CW PDF

Datasheet Details

Part number:

STPS30H100CW

Manufacturer:

STMicroelectronics ↗

File Size:

234.34 KB

Description:

100v power schottky rectifier.
