STPS30H100C - 100V power Schottky rectifier

Datasheet Summary

Description

This dual Schottky rectifier is designed for high frequency miniature switch mode power supplies such as adaptors and on-board DC-DC converters.

Packaged in TO-200AB and TO-247, this STPS30H100C is optimized for use in high frequency inverters.

Features

  • Negligible switching losses.
  • Low leakage current.
  • Good trade off between leakage current and forward voltage drop.
  • Avalanche rated.

📥 Download Datasheet

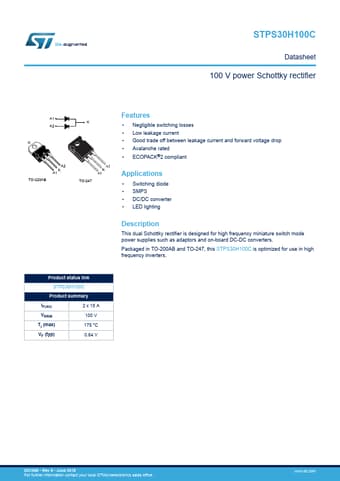

Datasheet preview – STPS30H100C

Datasheet Details

Part number STPS30H100C
Manufacturer STMicroelectronics
File Size 234.34 KB
Description 100V power Schottky rectifier
Datasheet download datasheet STPS30H100C Datasheet
Additional preview pages of the STPS30H100C datasheet.

📁 Similar Datasheet

  • STPS30H100CT - 100V power Schottky rectifier (ST Microelectronics)
  • STPS30H100CW - 100V power Schottky rectifier (ST Microelectronics)
  • STPS30H60C - Power Schottky Rectifier (ST Microelectronics)
  • STPS30100ST - 100V Power Schottky Rectifier (ST Microelectronics)
  • STPS30120C - Power Schottky Rectifier (ST Microelectronics)
  • STPS30120DJF - Low drop power Schottky rectifier (ST Microelectronics)
  • STPS30150C - High voltage power Schottky rectifier (ST Microelectronics)
  • STPS30150CFP - High voltage power Schottky rectifier (ST Microelectronics)
  • STPS30150CFP - Schottky Barrier Rectifier (INCHANGE)
  • STPS30150CT - High voltage power Schottky rectifier (ST Microelectronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
STPS30H100C Datasheet 100 V power Schottky rectifier A1 A2 K TO-220AB A2 A1 K K TO-247 A2 K A1 Features • Negligible switching losses • Low leakage current • Good trade off between leakage current and forward voltage drop • Avalanche rated • ECOPACK®2 compliant Applications • Switching diode • SMPS • DC/DC converter • LED lighting Description This dual Schottky rectifier is designed for high frequency miniature switch mode power supplies such as adaptors and on-board DC-DC converters. Packaged in TO-200AB and TO-247, this STPS30H100C is optimized for use in high frequency inverters. Product status link STPS30H100C Product summary IF(AV) 2 x 15 A VRRM 100 V Tj (max) 175 °C VF (typ) 0.
