STPS30H60CFP, STPS30H60C Power Schottky Rectifier

STMicroelectronics

Description

STPS30H60C Power Schottky rectifier .
Dual centre tab Schottky rectifier suited for high frequency switch mode power supply.

📥 Download Datasheet

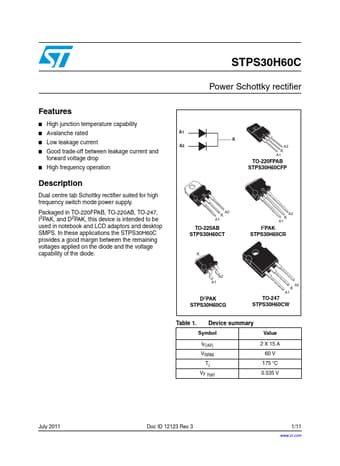

STPS30H60CFP Datasheet Preview — This datasheet PDF includes multiple part numbers: STPS30H60CFP, STPS30H60C. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STPS30H60CFP, STPS30H60C
Manufacturer: STMicroelectronics ↗
File Size: 156.49 KB
Datasheet: STPS30H60C_STMicroelectronics.pdf
Description: Power Schottky Rectifier
Note: This datasheet PDF includes multiple part numbers: STPS30H60CFP, STPS30H60C.
Please refer to the document for exact specifications by model.

Features

* High junction temperature capability
* Avalanche rated
* Low leakage current
* Good trade-off between leakage current and forward voltage drop

Applications

* the STPS30H60C provides a good margin between the remaining voltages applied on the diode and the voltage capability of the diode. A1 K A2 A2 K A1 TO-220FPAB STPS30H60CFP A2 K A1 TO-220AB STPS30H60CT K A2 K A1 I2PAK STPS30H60CR A2 A1 D2PAK STPS30H60CG A2 K A1 TO-247 STPS30H60CW Table 1.
