STS5DNF20V - N-CHANNEL POWER MOSFET

STS5DNF20V Description

N-CHANNEL 20V - 0.030 Ω - 5A SO-8 2.7V-DRIVE STripFET™ II POWER MOSFET TYPE STS5DNF20V s s s STS5DNF20V VDSS 20 V RDS(on) < 0.040 Ω ( @ 4.5 V ) < 0.
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process.

STS5DNF20V Applications

* s DC MOTOR DRIVE s DC-DC CONVERTERS s BATTERY MANAGEMENT IN NOMADIC EQUIPMENT s POWER MANAGEMENT IN PORTABLE/DESKTOP PCs INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM(
* ) Ptot Ptot Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ)

📥 Download Datasheet

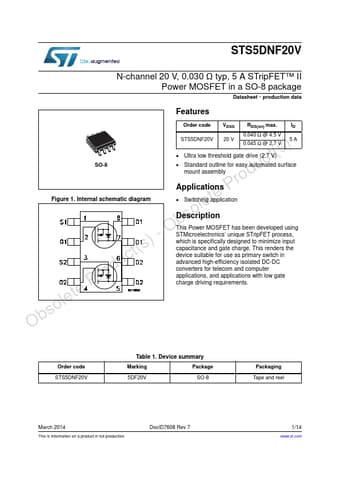

Preview of STS5DNF20V PDF
