STS5N150

N-CHANNEL POWER MOSFET

ST Microelectronics

STS5N150 General Description

This MOSFET series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input capacitance and gate charge. It is therefore suitable as primary switch in advanced highefficiency, high-frequency isolated DC-DC converters for Telecom and Computer applicati.

STS5N150 Datasheet (114.16 KB)

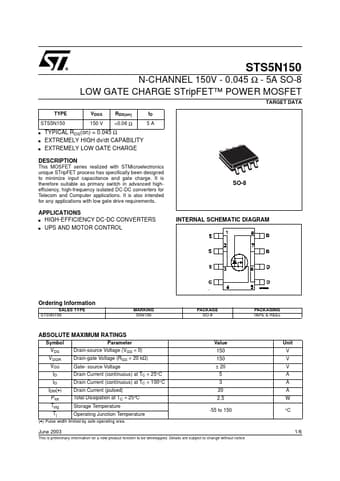

STS5N150 Datasheet Preview — Preview of STS5N150 PDF

Datasheet Details

Part number:

STS5N150

Manufacturer:

STMicroelectronics ↗

File Size:

114.16 KB

Description:

N-channel power mosfet.
N-CHANNEL 150V - 0.045 Ω - 5A SO-8 LOW GATE CHARGE STripFET™ POWER MOSFET TARGET DATA TYPE STS5N150 s s s STS5N150 VDSS 150 V RDS(on) <0.06 Ω ID 5.
