STS5NF60L - N-CHANNEL POWER MOSFET

STS5NF60L Description

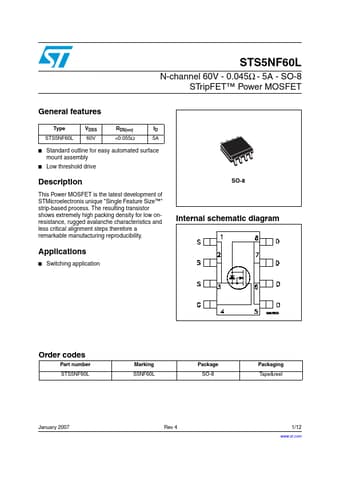

® STS5NF60L N - CHANNEL 60V - 0.045Ω - 5A SO-8 STripFET™ POWER MOSFET PRELIMINARY DATA TYPE STS5NF60L s s V DSS 60 V R DS(on) < 0.055 Ω ID 5A s .
This Power MOSFET is the second generation of STMicroelectronics unique " Single Feature Size™ " strip-based process.

STS5NF60L Applications

* s DC MOTOR DRIVE s DC-DC CONVERTERS s BATTERY MANAGMENT IN NOMADIC EQUIPMENT s POWER MANAGEMENT IN PORTABLE/DESKTOP PCs SO-8 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS V DGR V GS ID Parameter Drain-source Voltage (V GS = 0) Drain- gate Voltage (R GS = 20 k Ω ) Gate-source Volt
