STS5NS150 Datasheet - ST Microelectronics

N-CHANNEL POWER MOSFET

STS5NS150 General Description

This MOSFET series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input capacitance and gate charge. It is therefore suitable as primary switch in advanced highefficiency, high-frequency isolated DC-DC converters for Telecom and Computer applicati.

STS5NS150 Datasheet (277.79 KB)

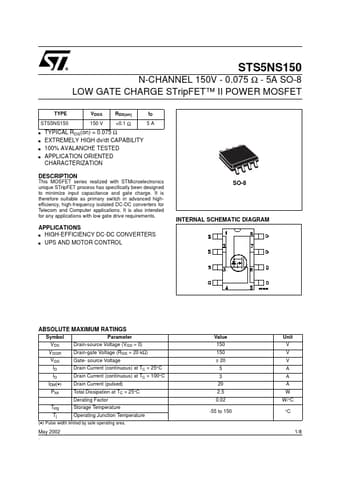

STS5NS150 Datasheet Preview — Preview of STS5NS150 PDF

Datasheet Details

Part number:

STS5NS150

Manufacturer:

STMicroelectronics ↗

File Size:

277.79 KB

Description:

N-channel power mosfet.
N-CHANNEL 150V - 0.075 Ω - 5A SO-8 LOW GATE CHARGE STripFET™ II POWER MOSFET TYPE STS5NS150 s s s s STS5NS150 VDSS 150 V RDS(on) <0.1 Ω ID 5A TYP.
