STS5DNF60L - Dual N-CHANNEL POWER MOSFET

STS5DNF60L Description

STS5DNF60L Datasheet Automotive-grade dual N-channel 60 V, 35 mΩ typ., 5 A STripFET II Power MOSFET in an SO-8 package 5 8 .
S1(1) S2(3) This Power MOSFET has been developed using STMicroelectronics' unique SC12820 STripFET process, which is specifically designed to mini.

STS5DNF60L Features

* Order code VDS RDS(on) max. ID 4 1 STS5DNF60L 60 V 45 mΩ 5A SO-8 D1(7, 8) D2(5, 6)
* AEC-Q101 qualified
* Exceptional dv/dt capability
* 100% avalanche tested

📥 Download Datasheet

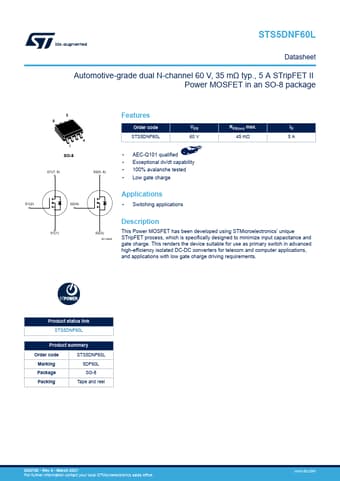

Preview of STS5DNF60L PDF
datasheet Preview Page 2 datasheet Preview Page 3
