STS5343 - NPN Silicon Transistor

STS5343 Description

Semiconductor STS5343 NPN Silicon Transistor .
General small signal amplifier Features. Low collector saturation voltage : VCE(sat)=0. Low output capacitance.

STS5343 Features

* Low collector saturation voltage : VCE(sat)=0.25V(Max. )
* Low output capacitance : Cob=2pF(Typ. )
* Complementary pair with STS1980 Ordering Information Type NO. STS5343 Marking STS5343 Package Code TO-92 Outline Dimensions 3.45±0.1 4.5±0.1 2.25±0.1 unit : mm 4.5±0.1 0.

📥 Download Datasheet

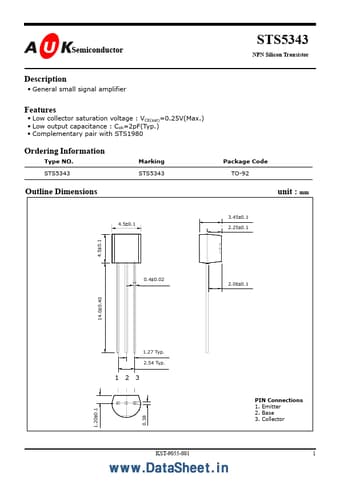

Preview of STS5343 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STS5343
Manufacturer
AUK
File Size
221.65 KB
Datasheet
STS5343_AUK.pdf
Description
NPN Silicon Transistor
