SCTHS250N120G3AG Datasheet, Mosfet, STMicroelectronics

SCTHS250N120G3AG Features

  • Mosfet Order code 23 SCTHS250N120G3AG VDS 1200 V RDS(on) typ. 8.5 mΩ ID 239 A 1
  • AEC-Q101 qualified
  • Very low RDS(on) over the entire temperature range
  • H

PDF File Details

Part number:

SCTHS250N120G3AG

Manufacturer:

STMicroelectronics ↗

File Size:

318.86kb

Download:

📄 Datasheet

Description:

Automotive-grade silicon carbide power mosfet. NG3DS2PS1D4 This silicon carbide Power MOSFET device has been developed using ST’s advanced and innovative 3rd generation SiC MOSFE

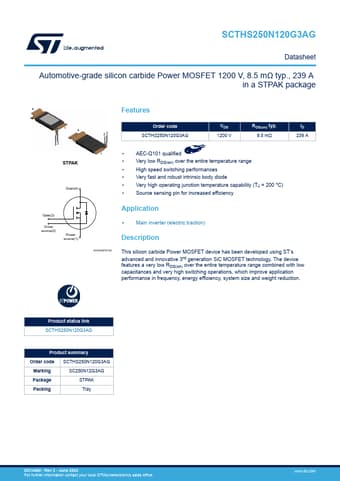

Datasheet Preview: SCTHS250N120G3AG 📥 Download PDF (318.86kb)
