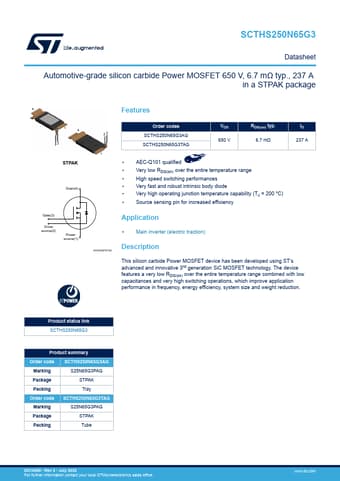

SCTHS250N65G3 Datasheet, Mosfet, STMicroelectronics

SCTHS250N65G3 Features

• Mosfet Order codes VDS RDS(on) typ. ID 23 SCTHS250N65G3AG 650 V 6.7 mΩ 237 A SCTHS250N65G3TAG 1
• AEC-Q101 qualified
• Very low RDS(on) over the entire temperatur

PDF File Details

Part number:

SCTHS250N65G3

Manufacturer:

STMicroelectronics ↗

File Size:

568.29kb

Download:

📄 Datasheet

Description:

Automotive-grade silicon carbide power mosfet. This silicon carbide Power MOSFET device has been developed using ST’s advanced and innovative 3rd generation SiC MOSFET technology.
