STGAP1BS Datasheet, Driver, STMicroelectronics

STGAP1BS Features

• Driver
• AEC-Q100 qualified
• High voltage rail up to 1500 V
• Driver current capability: 5 A sink/source current at 25 °C
• dV/dt transient immunity ±50 V/ns i

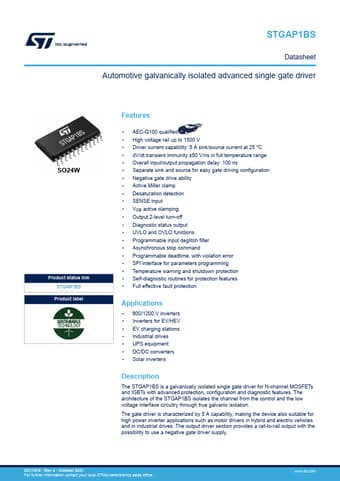

PDF File Details

Part number:

STGAP1BS

Manufacturer:

STMicroelectronics ↗

File Size:

1.01MB

Download:

📄 Datasheet

Description:

Automotive galvanically isolated advanced single gate driver. The STGAP1BS is a galvanically isolated single gate driver for N-channel MOSFETs and IGBTs with advanced protection, configuration an

STGAP1BS Application

• Applications
• 600/1200 V inverters
• Inverters for EV/HEV
• EV charging stations
• Industrial drives
• UPS
