STGAP2GSN - Isolated 3A single gate driver

STMicroelectronics

📥 Download Datasheet

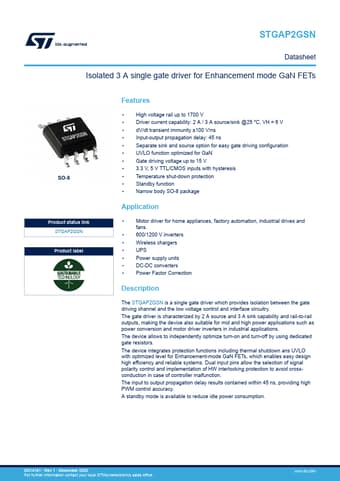

STGAP2GSN Datasheet Preview — Preview of STGAP2GSN PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STGAP2GSN
Manufacturer	STMicroelectronics ↗
File Size	551.51 KB
Description	Isolated 3A single gate driver
Datasheet	STGAP2GSN-STMicroelectronics.pdf

STGAP2GSN Product details

Description

The STGAP2GSN is a single gate driver which provides isolation between the gate driving channel and the low voltage control and interface circuitry.

Features

High voltage rail up to 1700 V.
Driver current capability: 2 A / 3 A source/sink @25 °C, VH = 6 V.
dV/dt transient immunity ±100 V/ns.
Input-output propagation delay: 45 ns.
Separate sink and source option for easy gate driving configuration.
UVLO function optimized for GaN.
Gate driving voltage up to 15 V.
3.3 V, 5 V TTL/CMOS inputs with hysteresis.
Temperature shut-down protection.
Standby function.
