STGAP2HD Datasheet, driver, STMicroelectronics

STGAP2HD Features

Driver
High voltage rail up to 1200 V
Driver current capability: 4 A sink/source @ 25 °C
dV/dt transient immunity ±100 V/ns
Overall input-output propaga

PDF File Details

Part number:

STGAP2HD

Manufacturer:

STMicroelectronics ↗

File Size:

798.63kb

Download:

📄 Datasheet

Description:

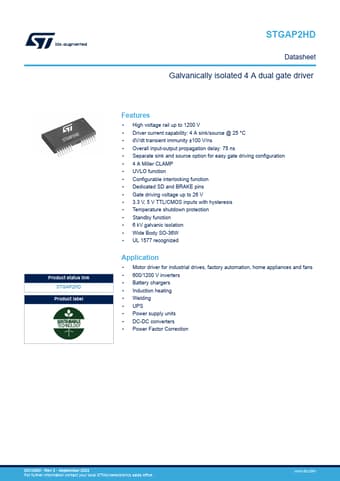

Galvanically isolated 4a dual gate driver. The STGAP2HD is a dual gate driver which provides galvanic isolation between each gate driving channel and the low voltage control an

📥 Download PDF (798.63kb)

STGAP2HD Application

Applications such as power conversion and industrial motor driver inverters. The separated output pins allow to independently optimize turn-on and t
