STGAP2GS - 3A single gate driver

STMicroelectronics

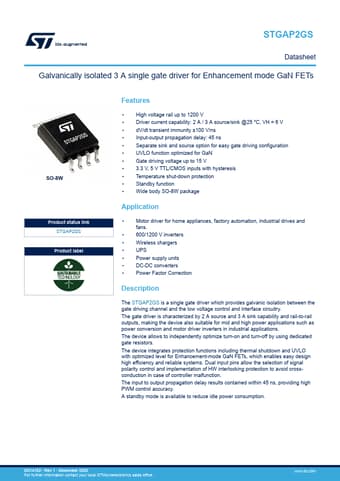

STGAP2GS Datasheet Preview — Preview of STGAP2GS PDF

Datasheet Details

Part number	STGAP2GS
Manufacturer	STMicroelectronics ↗
File Size	546.44 KB
Description	3A single gate driver
Datasheet	STGAP2GS-STMicroelectronics.pdf

STGAP2GS Product details

Description

The STGAP2GS is a single gate driver which provides galvanic isolation between the gate driving channel and the low voltage control and interface circuitry.

Features

High voltage rail up to 1200 V.
Driver current capability: 2 A / 3 A source/sink @25 °C, VH = 6 V.
dV/dt transient immunity ±100 V/ns.
Input-output propagation delay: 45 ns.
Separate sink and source option for easy gate driving configuration.
UVLO function optimized for GaN.
Gate driving voltage up to 15 V.
3.3 V, 5 V TTL/CMOS inputs with hysteresis.
Temperature shut-down protection.
Standby function.
