STGAP2S - Galvanically isolated 4A single gate driver

STMicroelectronics

STGAP2S Datasheet Preview — Preview of STGAP2S PDF

Datasheet Details

Part number	STGAP2S
Manufacturer	STMicroelectronics ↗
File Size	435.80 KB
Description	Galvanically isolated 4A single gate driver
Datasheet	STGAP2S-STMicroelectronics.pdf

STGAP2S Product details

Description

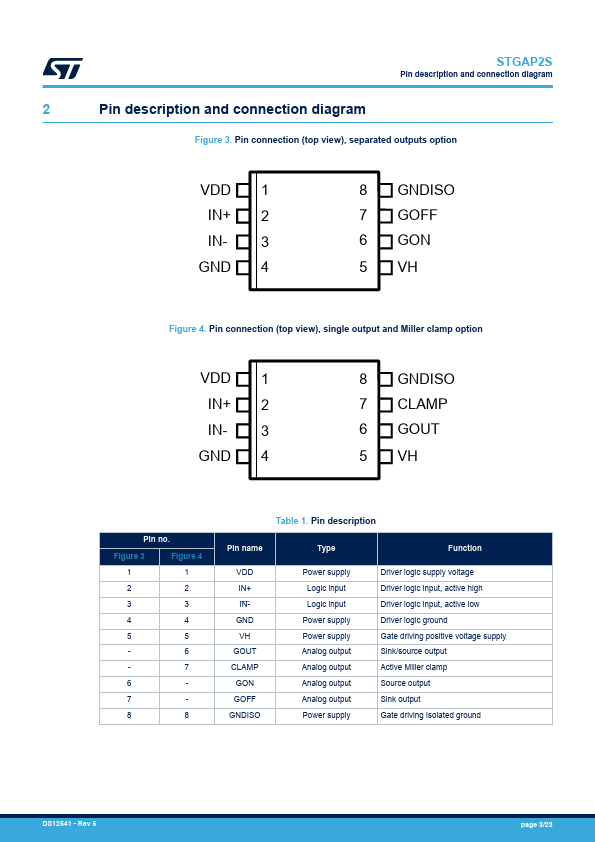

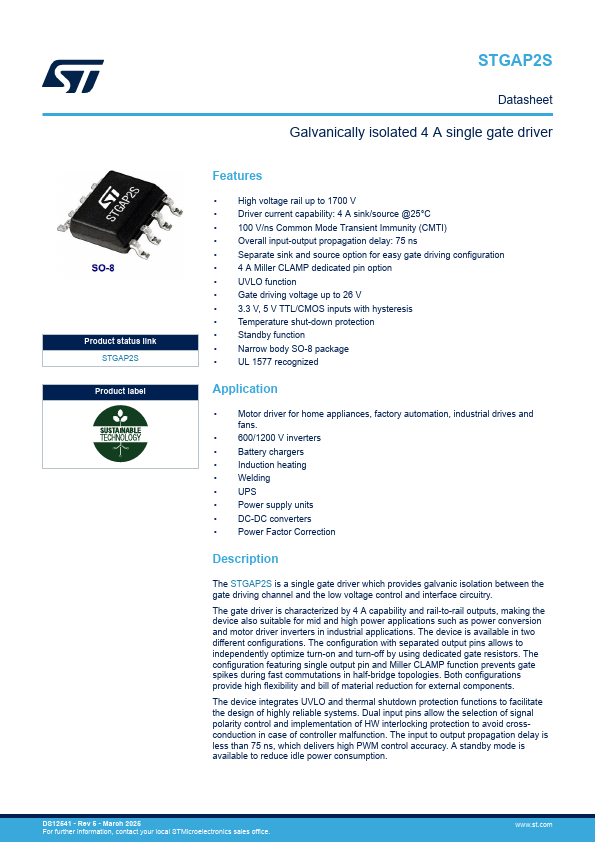

The STGAP2S is a single gate driver which provides galvanic isolation between the gate driving channel and the low voltage control and interface circuitry.

Features

High voltage rail up to 1700 V.
Driver current capability: 4 A sink/source @25°C.
100 V/ns Common Mode Transient Immunity (CMTI).
Overall input-output propagation delay: 75 ns.
Separate sink and source option for easy gate driving configuration.
4 A Miller CLAMP dedicated pin option.
UVLO function.
Gate driving voltage up to 26 V.
3.3 V, 5 V TTL/CMOS inputs with hysteresis.
Temperature shut-down protection.
