STGAP2SICSN

Galvanically isolated 4A single gate driver

STGAP2SICSN Features

* High voltage rail up to 1700 V

* Driver current capability: 4 A sink/source @25 °C

* dV/dt transient immunity ±100 V/ns in full temperature range

* Overall input-output propagation delay: 75 ns

* Separate sink and source option for easy gate driving configur

STGAP2SICSN General Description

The STGAP2SICSN is a single gate driver which provides galvanic isolation between the gate driving channel and the low voltage control and interface circuitry. The gate driver is characterized by 4 A capability and rail-to-rail outputs, making the device also suitable for mid and high power applicat.

STGAP2SICSN Datasheet (660.40 KB)

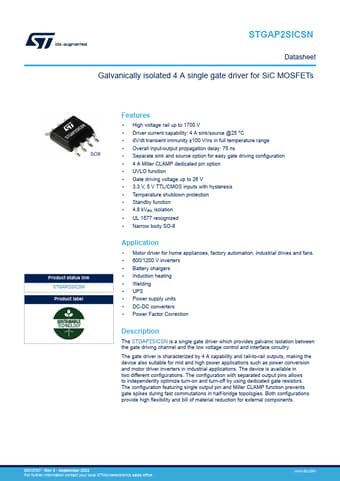

Preview of STGAP2SICSN PDF

Datasheet Details

Part number:

STGAP2SICSN

Manufacturer:

STMicroelectronics ↗

File Size:

660.40 KB

Description:

Galvanically isolated 4a single gate driver.
