STGAP2SICS - Galvanically isolated 4A single gate driver

STMicroelectronics

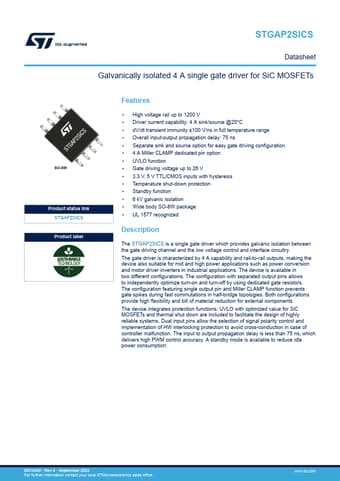

STGAP2SICS Datasheet Preview — Preview of STGAP2SICS PDF

Datasheet Details

Part number	STGAP2SICS
Manufacturer	STMicroelectronics ↗
File Size	712.34 KB
Description	Galvanically isolated 4A single gate driver
Datasheet	STGAP2SICS-STMicroelectronics.pdf

STGAP2SICS Product details

Description

The STGAP2SICS is a single gate driver which provides galvanic isolation between the gate driving channel and the low voltage control and interface circuitry.

Features

High voltage rail up to 1200 V.
Driver current capability: 4 A sink/source @25°C.
dV/dt transient immunity ±100 V/ns in full temperature range.
Overall input-output propagation delay: 75 ns.
Separate sink and source option for easy gate driving configuration.
4 A Miller CLAMP dedicated pin option.
UVLO function.
Gate driving voltage up to 26 V.
3.3 V, 5 V TTL/CMOS inputs with hysteresis.
Temperature shut-d.
