STGAP2SICSA - Galvanically isolated 4A single gate driver

STMicroelectronics

STGAP2SICSA Datasheet Preview — Preview of STGAP2SICSA PDF

Datasheet Details

Part number	STGAP2SICSA
Manufacturer	STMicroelectronics ↗
File Size	621.24 KB
Description	Galvanically isolated 4A single gate driver
Datasheet	STGAP2SICSA-STMicroelectronics.pdf

STGAP2SICSA Product details

Description

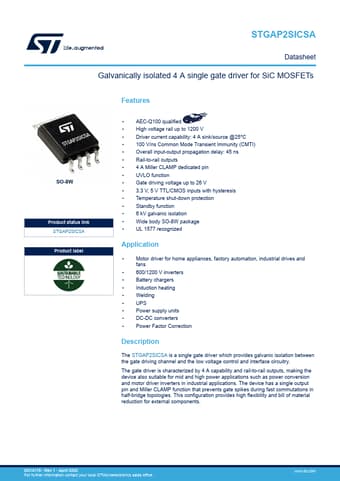

The STGAP2SICSA is a single gate driver which provides galvanic isolation between the gate driving channel and the low voltage control and interface circuitry.

Features

AEC-Q100 qualified.
High voltage rail up to 1200 V.
Driver current capability: 4 A sink/source @25°C.
100 V/ns Common Mode Transient Immunity (CMTI).
Overall input-output propagation delay: 45 ns.
Rail-to-rail outputs.
4 A Miller CLAMP dedicated pin.
UVLO function.
Gate driving voltage up to 26 V.
3.3 V, 5 V TTL/CMOS inputs with hysteresis.
Temperature shut-down protection.
Standby functi.
