STGB30V60DF Datasheet, Igbt, STMicroelectronics

STGB30V60DF Features

  • Igbt
  • Maximum junction temperature: TJ = 175 °C
  • Tail-less switching off
  • VCE(sat) = 1.85 V (typ.) @ IC = 30 A
  • Tight parameters distribution
  • Sa

PDF File Details

Part number:

STGB30V60DF

Manufacturer:

STMicroelectronics ↗

File Size:

1.09MB

Download:

📄 Datasheet

Description:

Trench gate field-stop igbt. This device is an IGBT developed using an advanced proprietary trench gate field stop structure. The device is part of the V series

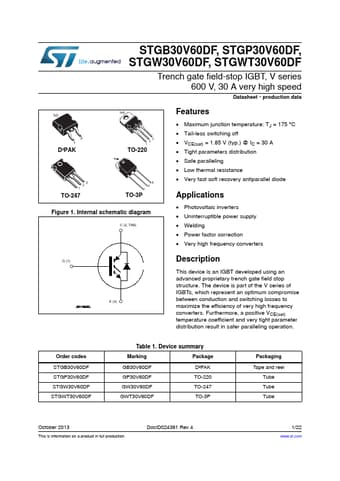

Datasheet Preview: STGB30V60DF 📥 Download PDF (1.09MB)
Page 2 of STGB30V60DF Page 3 of STGB30V60DF

STGB30V60DF Application

  • Applications
  • Photovoltaic inverters
  • Uninterruptible power supply
  • Welding
  • Power factor correction
  • V
