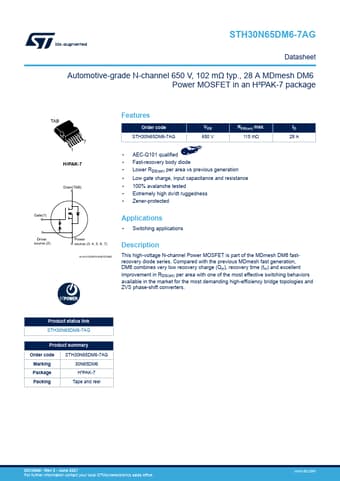

STH30N65DM6-7AG Datasheet, Mosfet, STMicroelectronics

STH30N65DM6-7AG Features

• Mosfet Order code STH30N65DM6-7AG VDS 650 V RDS(on) max. 115 mΩ ID 28 A
• AEC-Q101 qualified
• Fast-recovery body diode
• Lower RDS(on) per area vs previous generat

PDF File Details

Part number:

STH30N65DM6-7AG

Manufacturer:

STMicroelectronics ↗

File Size:

809.33kb

Download:

📄 Datasheet

Description:

Automotive-grade n-channel power mosfet. This high-voltage N-channel Power MOSFET is part of the MDmesh DM6 fastrecovery diode series. Compared with the previous MDmesh fast

STH30N65DM6-7AG Application

• Applications
• Switching applications Description This high-voltage N-channel Power MOSFET is part of the MDmesh DM6 fastrecovery diode seri
