STH315N10F7-2 Datasheet, Mosfet, STMicroelectronics

STH315N10F7-2 Features

  • Mosfet Order code STH315N10F7-2 STH315N10F7-6 VDS 100 V RDS(on) max. 2.3 mΩ
  • AEC-Q101 qualified
  • Among the lowest RDS(on) on the market
  • Excellent FoM (figure of

PDF File Details

Part number:

STH315N10F7-2

Manufacturer:

STMicroelectronics ↗

File Size:

446.25kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These N-channel Power MOSFETs utilize STripFET F7 technology with an enhanced trench gate structure that results in very low on-state

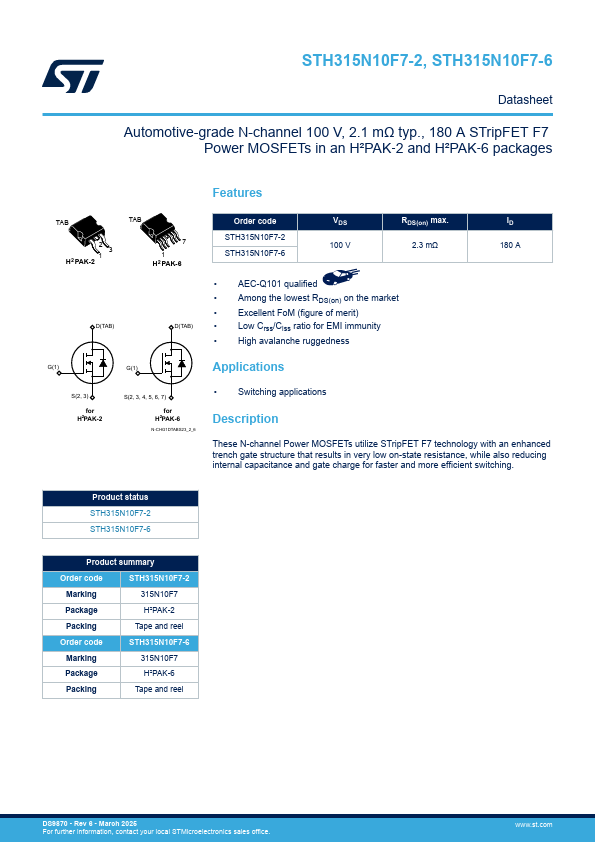

Datasheet Preview: STH315N10F7-2 📥 Download PDF (446.25kb)

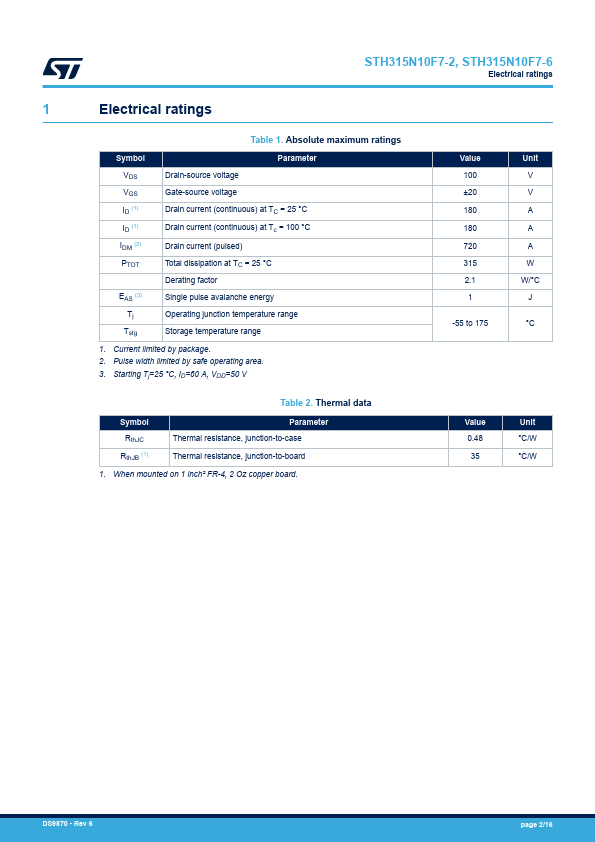

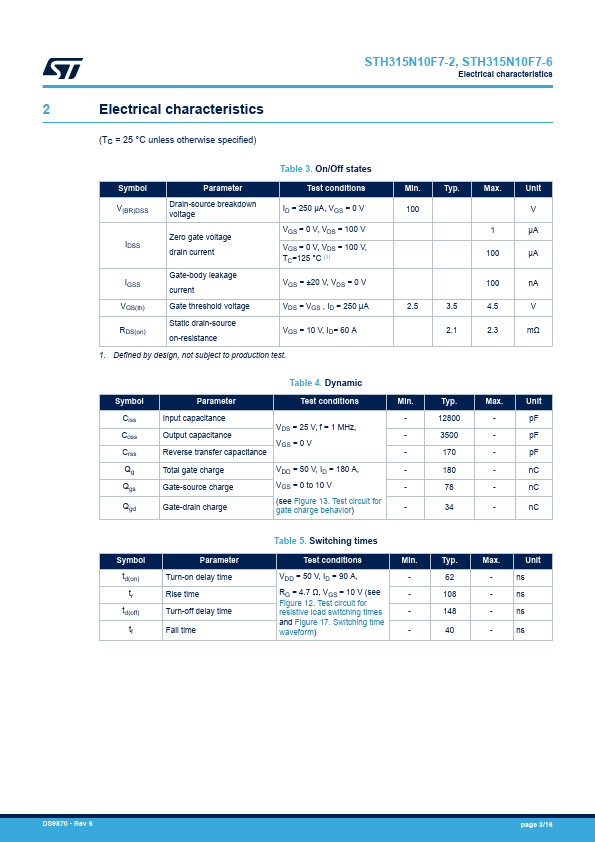

Page 2 of STH315N10F7-2 Page 3 of STH315N10F7-2

STH315N10F7-2 Application

  • Applications
  • Switching applications Description These N-channel Power MOSFETs utilize STripFET F7 technology with an enhanced trench gate
