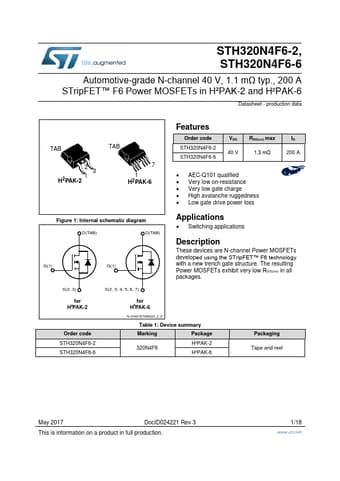

STH320N4F6-6, STH320N4F6-2 Datasheet (STMicroelectronics)

STH320N4F6-6, STH320N4F6-2, N-channel Power MOSFET

These devices are N-channel Power MOSFETs developed using the 6th generation of STripFET™ DeepGATE™ technology, with a new gate structure.

The resulting Power MOSFETs exhibits the lowest RDS(on) in all packages.

Figure 1.

Internal schematic diagram D(TAB) D(TAB) G(1) G(1) Table 1.

Device summa

STH320N4F6-6 Features

* STH320N4F6-2, STH320N4F6-6 N-channel 40 V, 1.1 mΩ typ., 200 A, H²PAK-2, H²PAK-6 STripFET™ VI DeepGATE™ Power MOSFET Datasheet

* production data Order codes STH320N4F6-2 STH320N4F6-6 VDS RDS(on) max 40 V 1.3 mΩ 1. Current limited by package.

* Standard threshold drive

* 100% av
