STL210N4F7AG Datasheet, Mosfet, STMicroelectronics

STL210N4F7AG Features

  • Mosfet Order code STL210N4F7AG V DS 40 V RDS(on) max 1.6 mΩ ID 120 A
  • Designed for automotive applications and AEC-Q101 qualified
  • Among the lowest RDS(on) on the market

PDF File Details

Part number:

STL210N4F7AG

Manufacturer:

STMicroelectronics ↗

File Size:

789.90kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate

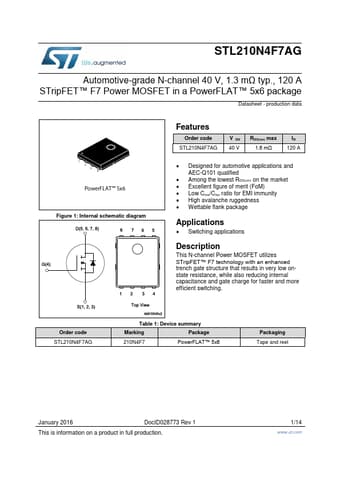

Datasheet Preview: STL210N4F7AG 📥 Download PDF (789.90kb)
Page 2 of STL210N4F7AG Page 3 of STL210N4F7AG

STL210N4F7AG Application

  • Applications and AEC-Q101 qualified
  • Among the lowest RDS(on) on the market
  • Excellent figure of merit (FoM)
  • Low Crss/Ci

TAGS

STL210N4F7AG
N-channel
Power
MOSFET
STMicroelectronics
