STL24N60DM2 - N-CHANNEL POWER MOSFET

Name: STL24N60DM2
SKU: STL24N60DM2-1087572

STMicroelectronics

The STL24N60DM2 by STMicroelectronics is a N-CHANNEL POWER MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	STL24N60DM2
Manufacturer	STMicroelectronics
File Size	683.09 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STL24N60DM2-STMicroelectronics.pdf

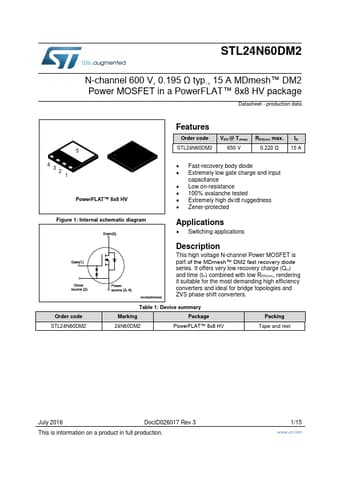

Additional preview pages of the STL24N60DM2 datasheet.

This high voltage N-channel Power MOSFET is part of the MDmesh™ DM2 fast recovery diode series.

Order code VDS @ TJmax RDS(on) max. ID 5 STL24N60DM2 650 V 0.220 Ω 15 A 4 32 1 PowerFLAT™ 8x8 HV Figure 1: Internal schematic diagram.
Fast-recovery body diode.
Extremely low gate charge and input capacitance.
Low on-resistance.
100% avalanche tested.
Extremely high dv/dt ruggedness.
Zener-protected.
