STL24N60M6

N-CHANNEL POWER MOSFET

STMicroelectronics

STL24N60M6 Features

* Order code VDS STL24N60M6 600 V

* Reduced switching losses

* Lower RDS(on) per area vs previous generation

* Low gate input resistance

* 100% avalanche tested

* Zener-protected RDS(on) max. 209 mΩ Applications

* Switching applications

STL24N60M6 General Description

The new MDmesh™ M6 technology incorporates the most recent advancements to the well-known and consolidated MDmesh family of SJ MOSFETs. STMicroelectronics builds on the previous generation of MDmesh devices through its new M6 technology, which combines excellent RDS(on) per area improvement with one.

STL24N60M6 Datasheet (355.81 KB)

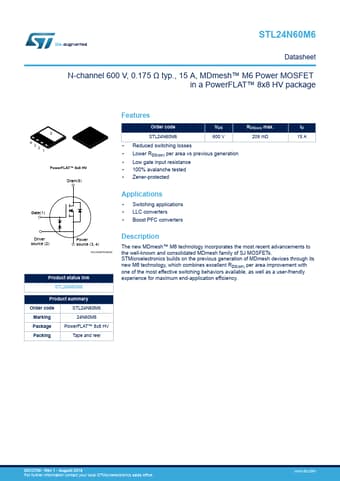

STL24N60M6 Datasheet Preview — Preview of STL24N60M6 PDF

Datasheet Details

Part number:

STL24N60M6

Manufacturer:

STMicroelectronics ↗

File Size:

355.81 KB

Description:

N-channel power mosfet.
STL24N60M6 Datasheet N-channel 600 V, 0.175 Ω typ., 15 A, MDmesh™ M6 Power MOSFET in a PowerFLAT™ 8x8 HV package 5 432 1 PowerFLAT™ 8x8 HV Drain(5) G.
