STL24N65M2

N-channel Power MOSFET

STMicroelectronics

STL24N65M2 Features

* Order codes STL24N65M2 VDS 650 V RDS(on) max 0.250 Ω ID 14 A

* Extremely low gate charge

* Excellent output capacitance (Coss) profile

* 100% avalanche tested

* Zener-protected Applications

* Switching applications Description This device is an N-channel Power MOSFET develope

STL24N65M2 General Description

This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology. Thanks to its strip layout and improved vertical structure, the devices exhibit low on-resistance and optimized switching characteristics, rendering it suitable for the most demanding high efficiency converters. Order c.

STL24N65M2 Datasheet (766.61 KB)

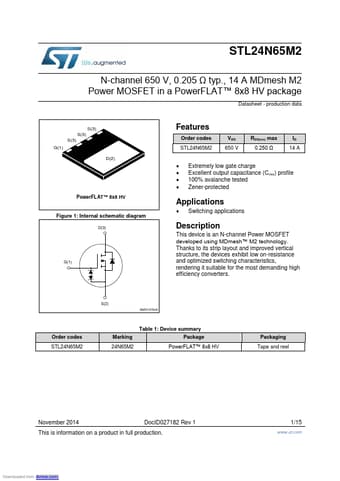

STL24N65M2 Datasheet Preview — Preview of STL24N65M2 PDF

Datasheet Details

Part number:

STL24N65M2

Manufacturer:

STMicroelectronics ↗

File Size:

766.61 KB

Description:

N-channel power mosfet.
STL24N65M2 N-channel 650 V, 0.205 Ω typ., 14 A MDmesh M2 Power MOSFET in a PowerFLAT™ 8x8 HV package Datasheet - production data S(3) S(3) S(3) G(1).
