STL28NF3LL N-CHANNEL MOSFET

STL28NF3LL Description

STL28NF3LL www.datasheet4u.com N-CHANNEL 30V - 0.0055Ω - 28A PowerFLAT™ LOW GATE CHARGE STripFET™ MOSFET PRELIMINARY DATA VDSS 30 V RDS(on) < 0.0065 .
This Power MOSFET is the second generation of STMicroelectronics unique “STripFET™” technology.

STL28NF3LL Applications

* DC-DC CONVERTERS ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID(#) IDM ( ) PTOT EAS (1) Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Current (continuos) at TC = 25°C Drain Current (continuos) at TC = 100°C Drain Current (pulsed) Total

📥 Download Datasheet

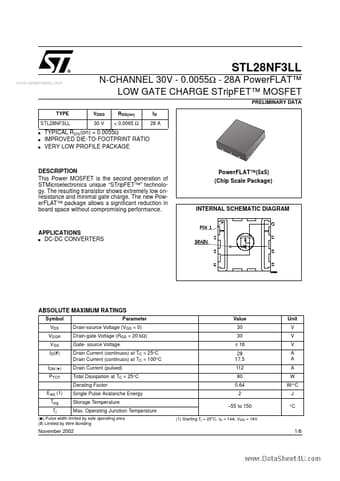

Preview of STL28NF3LL PDF
datasheet Preview Page 2 datasheet Preview Page 3
