STP25N80K5 Datasheet, Mosfet, STMicroelectronics

STP25N80K5 Features

  • Mosfet Order code VDS @ TJmax RDS(on) max ID PTOT STB25N80K5 250 W STF25N80K5 STP25N80K5 STW25N80K5 800 V < 0.260 Ω 19.5 A 40 W 250 W
  • Industry’s lowest RDS(on) x area

PDF File Details

Part number:

STP25N80K5

Manufacturer:

STMicroelectronics ↗

File Size:

937.90kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These very high voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology based on an innovative proprietary vertical

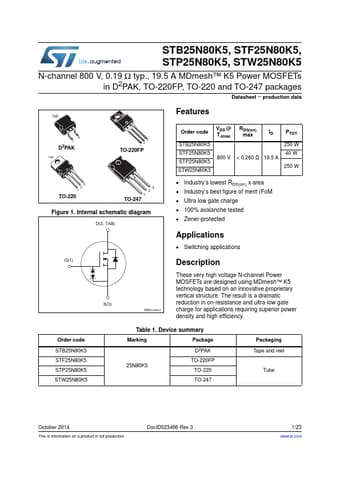

Datasheet Preview: STP25N80K5 📥 Download PDF (937.90kb)
Page 2 of STP25N80K5 Page 3 of STP25N80K5

STP25N80K5 Application

  • Applications
  • Switching applications
  •  6  AM01476v1 Description These very high voltage N-channel Power MOSFETs are designe
