STP25N06 Datasheet (ST Microelectronics) - N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR

STP25N06, N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR

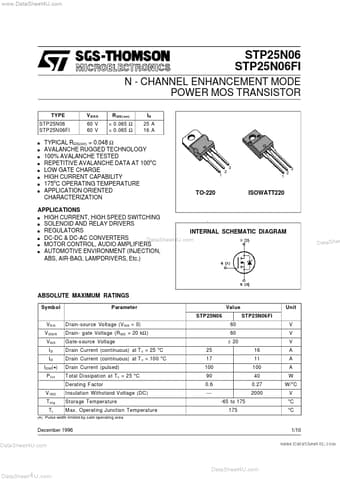

www.DataSheet4U.com STP25N06 STP25N06FI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR TYPE STP25N06 STP25N06FI s s s s s s s s V DSS 60 V 60 V R DS( on) < 0.065 Ω < 0.065 Ω ID 25 A 16 A TYPICAL RDS(on) = 0.048 Ω AVALANCHE RUGGED TECHNOLOGY 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW GATE CHARGE HIGH CURRENT CAPABILITY 175oC OPERATING TEMPERATURE APPLICATION ORIENTED CHARACTERIZATION 3 1 2 1 2 3 TO-220 ISOWATT220 APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s S
