STP25NM60N

N-channel Power MOSFET

STP25NM60N Features

* Type STB25NM60N STB25NM60N-1 STF25NM60N STP25NM60N STW25NM60N VDSS (@Tjmax) 650 V 650 V 650 V 650 V 650 V RDS(on) max < 0.160 Ω < 0.160 Ω < 0.160 Ω < 0.160 Ω < 0.160 Ω ID 3 3 1 2 21 A 21 A 21 A(1) 21 A 21 A 1 2 TO-220FP 3 1 TO-220 D²PAK 3 12 2 1 3 1. Limited only by maximum temperature allowe

STP25NM60N General Description

This series of devices is realized with the second generation of MDmesh™ technology. This revolutionary MOSFET associates a new vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most demanding high effi.

STP25NM60N Datasheet (618.54 KB)

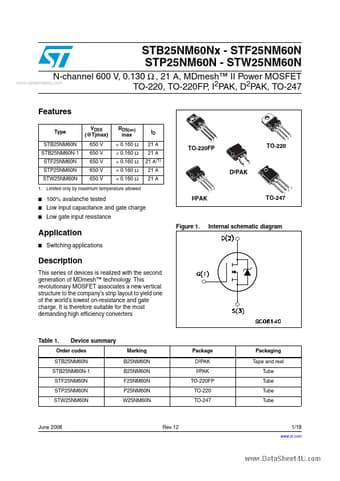

Preview of STP25NM60N PDF

Datasheet Details

Part number:

STP25NM60N

Manufacturer:

STMicroelectronics ↗

File Size:

618.54 KB

Description:

N-channel power mosfet.
STB25NM60Nx - STF25NM60N STP25NM60N - STW25NM60N www.datasheet4u.com N-channel 600 V, 0.130 Ω , 21 A, MDmesh™ II Power MOSFET TO-220, TO-220FP, I2PAK.
