STP25NM60ND Datasheet - STMicroelectronics

STP25NM60ND N-channel MOSFET

The FDmesh™ II series belongs to the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a new vertical structure to the company's strip layout and associates all advantages of reduced onresistance and fast switching with an intrinsic fastrecovery body diode.It is the.

STP25NM60ND Features

* Type www.DataSheet4U.com VDSS @ TJMAX RDS(on) max ID 3 3 1 2 3 1 2 1 STB25NM60ND STI25NM60ND STF25NM60ND STP25NM60ND STW25NM60ND 650 V 0.16 Ω 21 A 21 A 21 A(1) 21 A 21 A TO-220 D2PAK TO-220FP 1. Limited only by maximum temperature allowed

* 3 12 2 1 3 Th

STP25NM60ND Datasheet (570.24 KB)

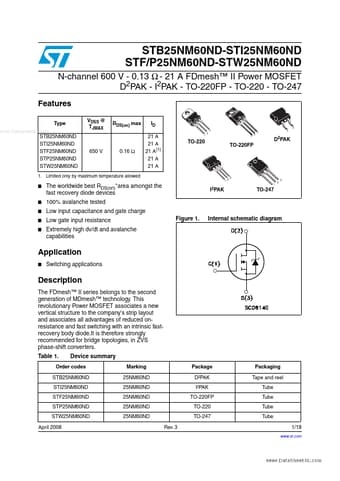

Preview of STP25NM60ND PDF
STP25NM60ND Datasheet Preview Page 2 STP25NM60ND Datasheet Preview Page 3

Datasheet Details

Part number:

STP25NM60ND

Manufacturer:

STMicroelectronics ↗

File Size:

570.24 KB

Description:

N-channel mosfet.
